This finish also hides small damage and scratches to the jacketing and reduces sunlight reflection. In addition, the nature of this finish gives the aluminum jacket more ability to expand and contract to adapt to insulation movement caused by pipe or ambient temperature changes. Lastly, the rigidity and strength of corrugated finish is substantially increased making it ideal for use as jacketing on large diameter pipe and vessels up to 8 ft diameter. This finish is available in a maximum thickness of 0.024 inches.
ISOJIANXIN ALUMINUM CLADDING INTRODUCTION
ISOJIANXIN® Aluminum Jacketing is the premier protective outer surface for mechanical insulation systems including pipe, vessels, and equipment.It protects the insulation and underlying pipe/vessel from physical damage, UV exposure, corrosive atmospheres, and water.
SPECIFICATION
A. Alloy Offered: AA 1XXX, AA 3XXX, AA 5XXX, AA 8XXX B. Temper Offered: O, H12, H14, H16, H18, H26, H46 C. Chemical Composition: The material chemical composition is checked with spectrometer and complies to ASTM B 209M-14 STANDARDS and BS EN STANDARDS. D. Mechanical Composition: The material mechanical composition is checked with tensile test machine and complies to ASTM B 209M-14 STANDARDS and BS EN STANDARDS. E. Applicable Standards For MILL FINISH : ASTM B-209M-14 and BSEN For COATED SHEET : ECCA/ASTM
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Others |
Al |
|
3003 |
0.6 |
0.7 |
0.05-0.20 |
1.0-1.5 |
- |
- |
0.10 |
- |
0.2 |
remainder |
|
1060 |
0.25 |
0.35 |
0.05 |
0.03 |
0.03 |
- |
0.05 |
0.03 |
0.03 |
99.6 |

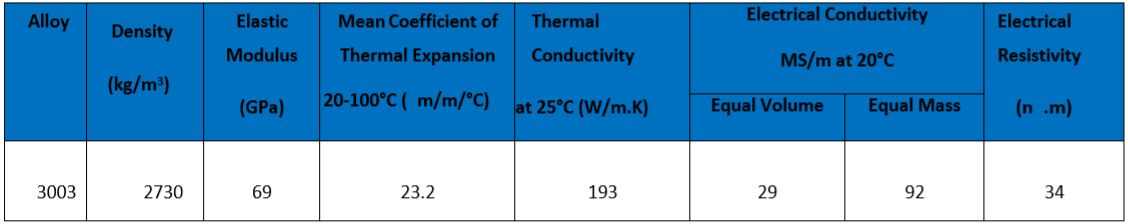

3003 SERIES
1060 SERIES

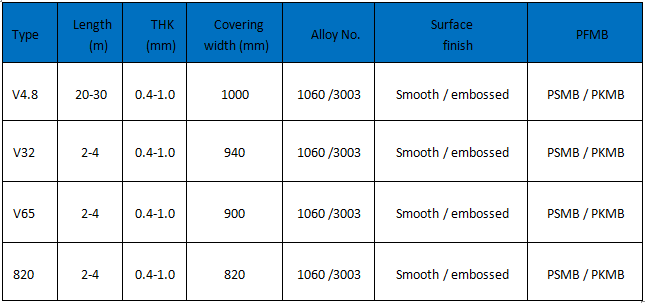

SPECIFICATION:

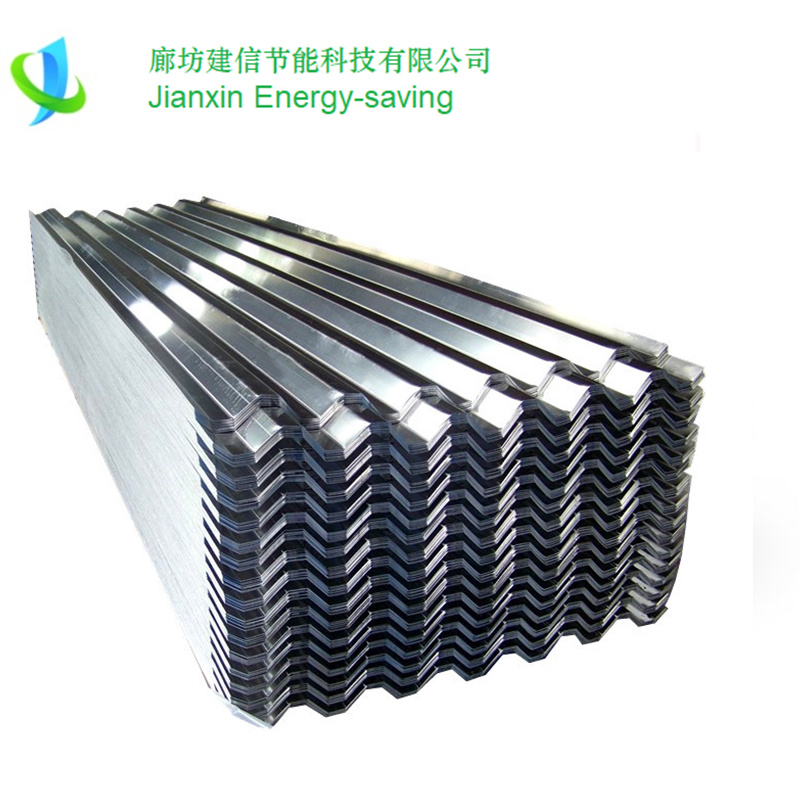

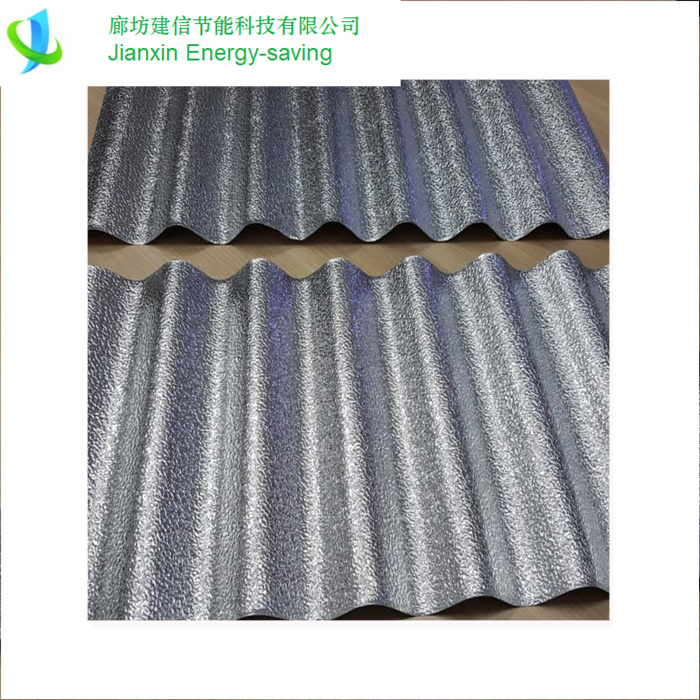

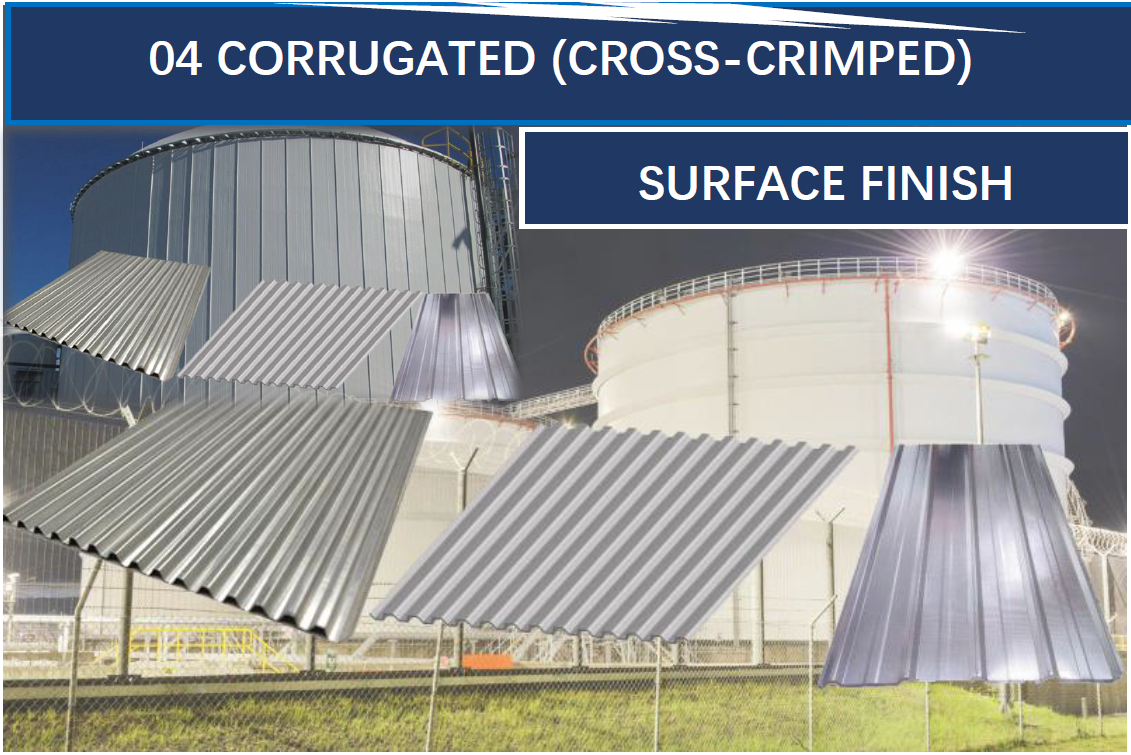

CORRUGATED (CROSS-CRIMPED) SURFACE FINISH

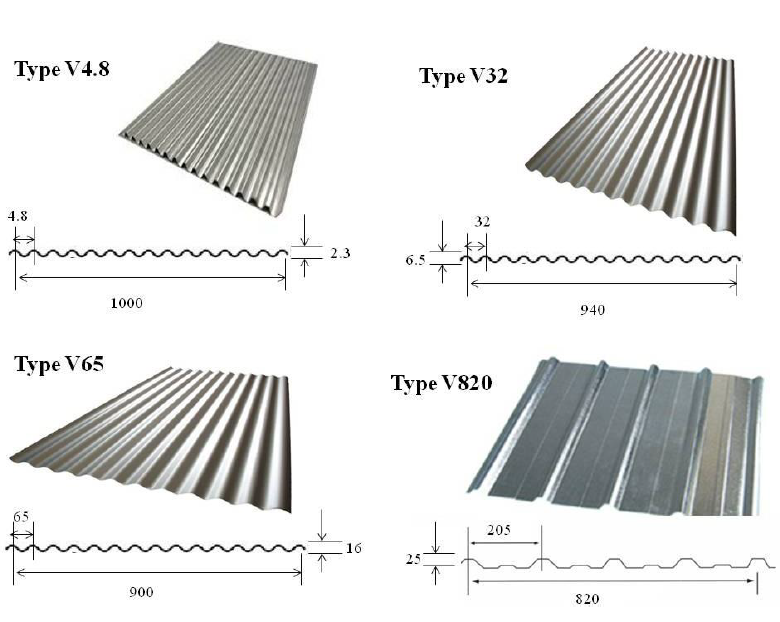

There are four corrugations available. The following drawings are measured in millimeter.
APPLICATION
1. Type V4.8 (3/16”) corrugation is used for the bigger diameter of pipeline.
2. Type V32 (1-1/4”) and type V65 (2-1/2”) corrugation are used for the bigger equipment, vessel, device, tank farms, fractionation units, cokers, chemical storage tanks, breechings, large ducts, wastewater and sewage storage tanks and large vertical ammonia storage tanks.
3. Type 820 corrugation is used for the boiler, horizontal cylindrical tanks, building etc.

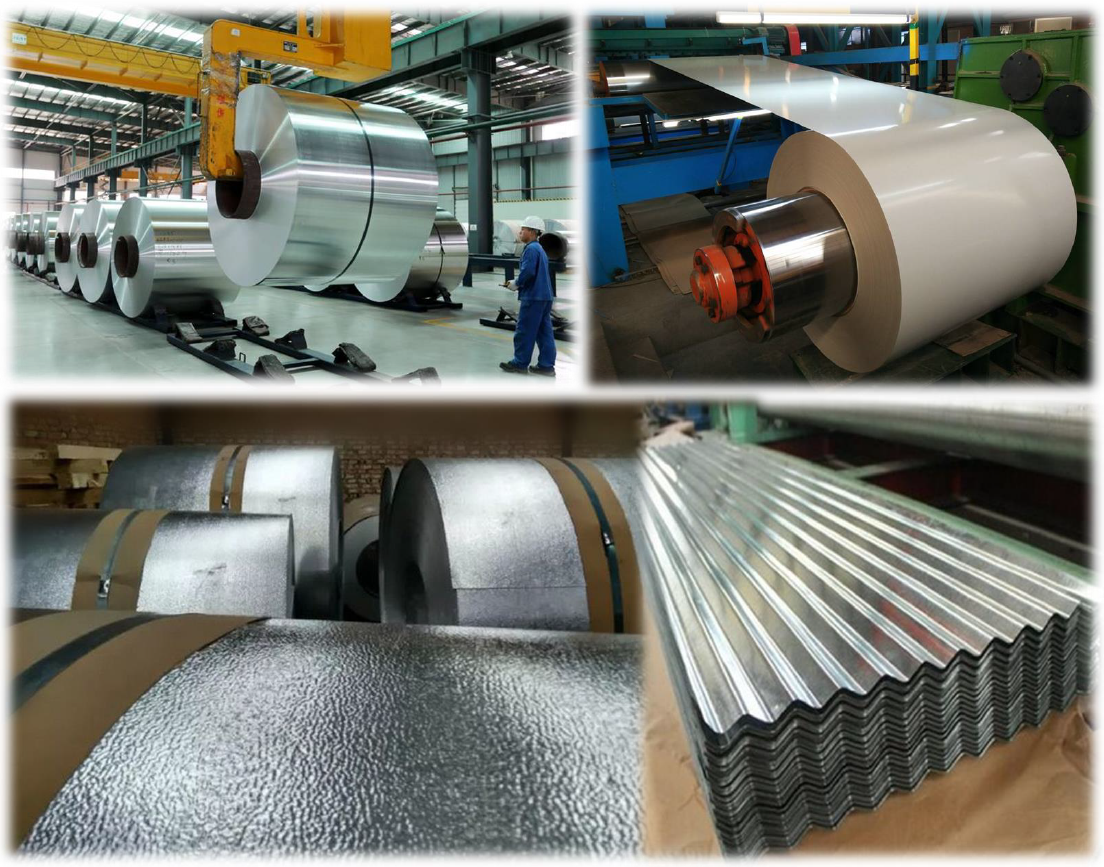

ISOJIANXIN ALUMINUM CLADDING SERIES PRODUCTION:
