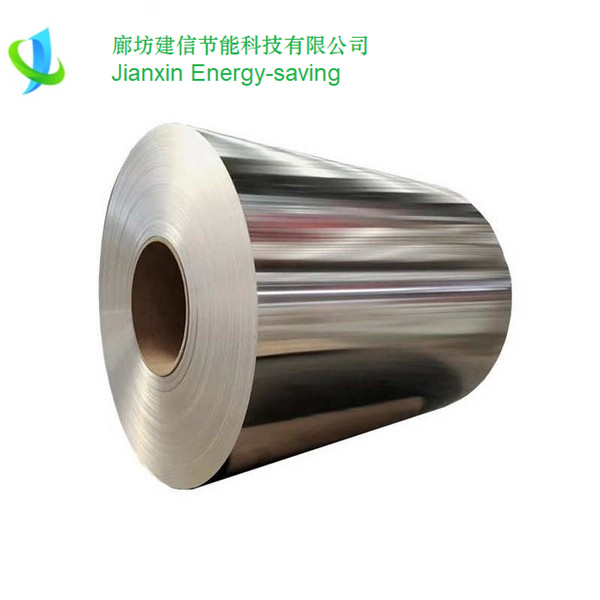

Smooth (Plain Mill) Aluminum Cladding

ISOJIANXIN ALUMINUM CLADDING INTRODUCTION

ISOJIANXIN® Aluminum Jacketing is the premier protective outer surface for mechanical insulation systems including pipe, vessels, and equipment.It protects the insulation and underlying pipe/vessel from physical damage, UV exposure, corrosive atmospheres, and water.

SPECIFICATION

A. Alloy Offered: AA 1XXX, AA 3XXX, AA 5XXX, AA 8XXX

B. Temper Offered: O, H12, H14, H16, H18, H26, H46

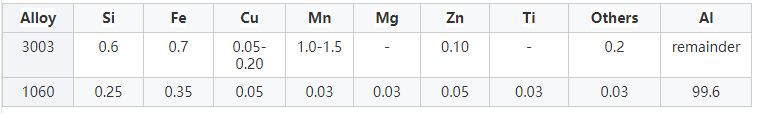

C. Chemical Composition: The material chemical composition is checked with spectrometer and complies to ASTM B 209M-14 STANDARDS and BS EN STANDARDS.

D. Mechanical Composition: The material mechanical composition is checked with tensile test machine and complies to ASTM B 209M-14 STANDARDS and BS EN STANDARDS.

E. Applicable Standards For MILL FINISH : ASTM B-209M-14 and BSEN For COATED SHEET : ECCA/ASTM

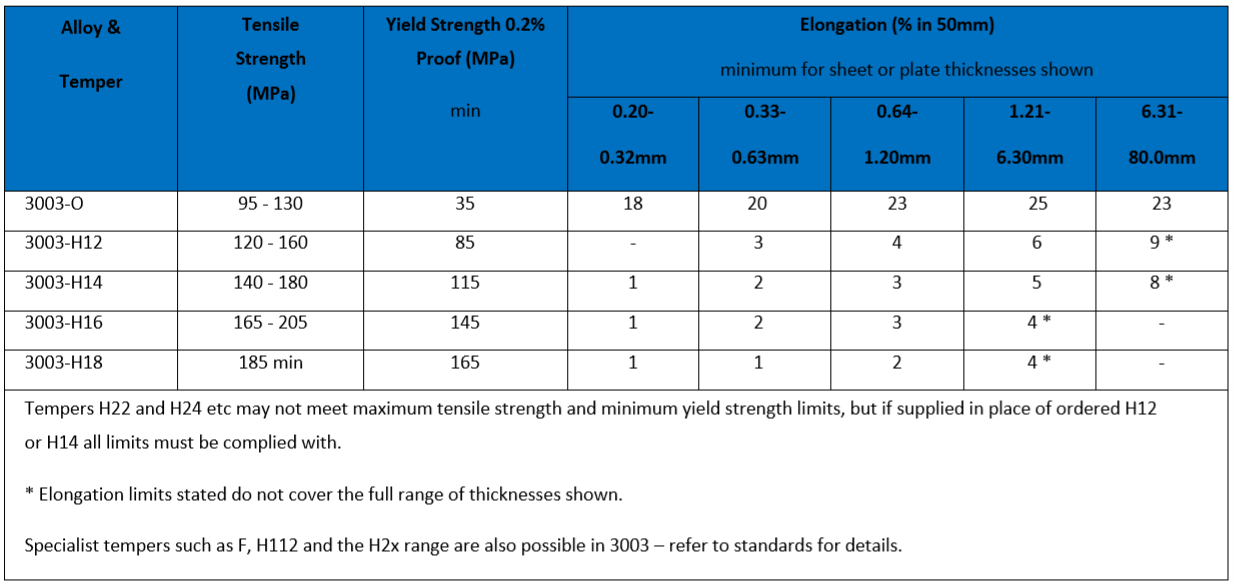

3003 SERIES

ISOJIANXIN ALUMINUM CLADDING

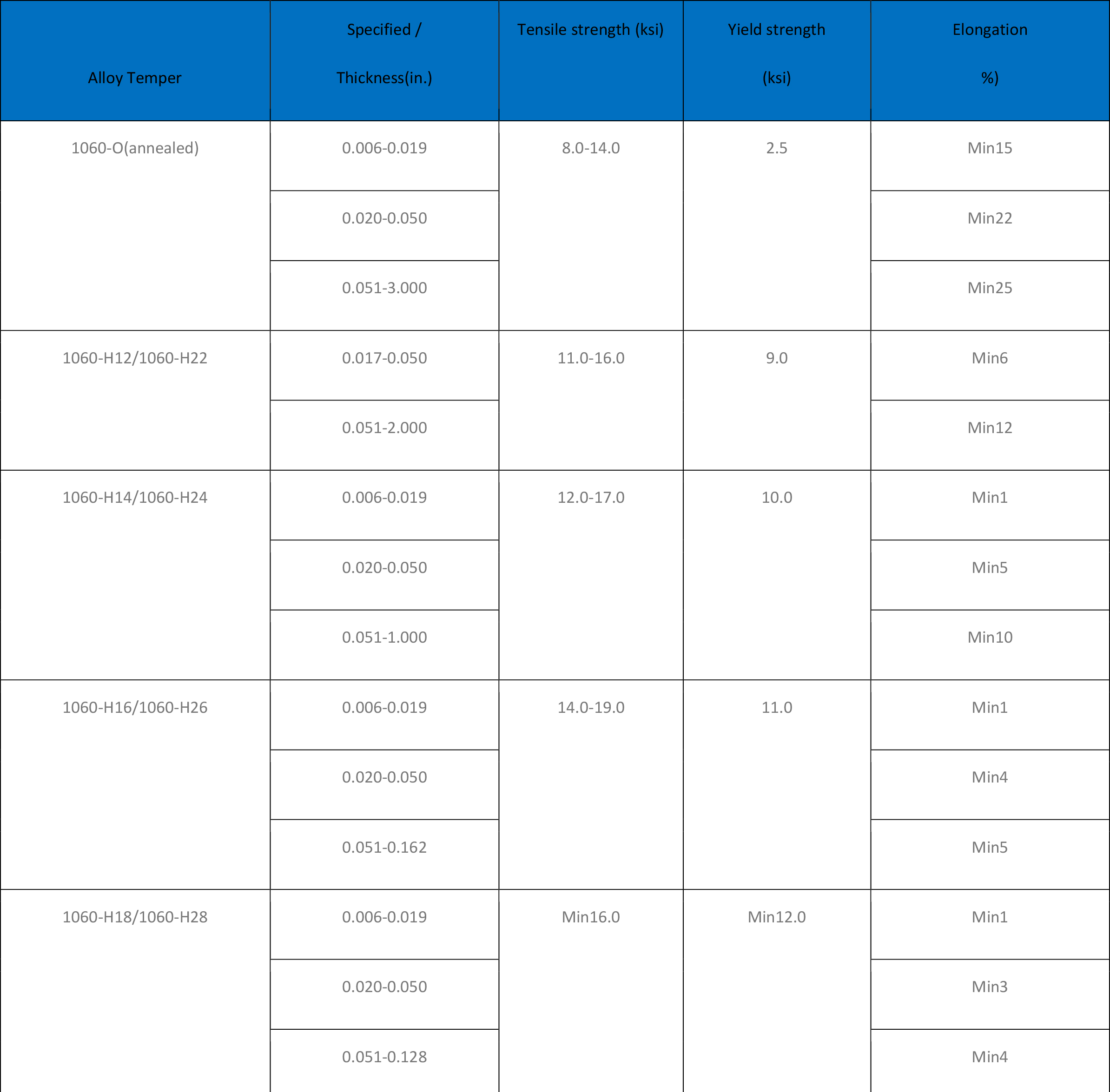

1060 SERIES

ISOJIANXIN ALUMINUM CLADDING

INTRODUCTION

This is a very popular finish and is the “default” for the many end users/specifiers who prefer the clean look of this finish. This finish sheds rain water the best. However, this smooth surface readily shows damage such as from hail or other physical abuse. It also shows the dirt more than the other finishes due to its smoothness. Lastly, it is highly reflective of sunlight and when located near roadways, some specifiers see this reflection as a possible safety hazard.
